Conformal Coatings

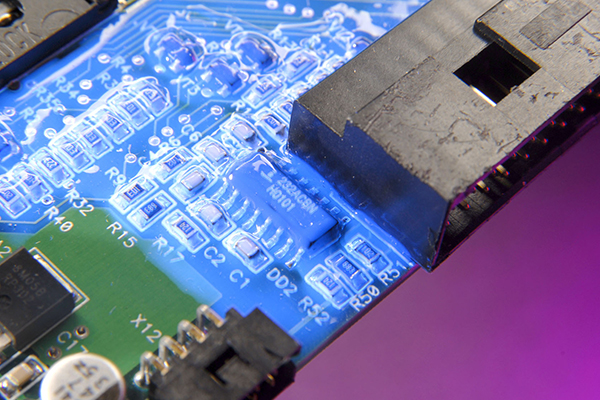

Conformal Coating for printed circuit boards is a kind of silicone varnish that when applied forms a thin layer on the surface. The coatings protect the board against harmful elements such as humidity, corrosion, salt spray, dust, splashing water, some types of chemical agents and extreme temperatures.

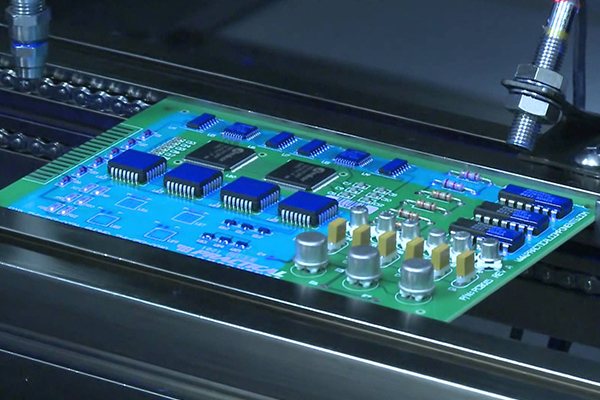

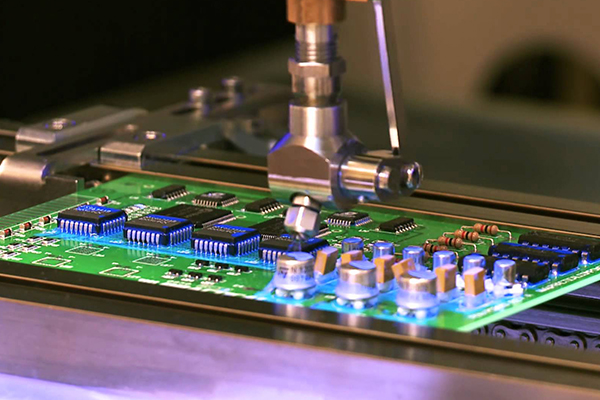

Protectronics Conformal Coatings can be applied by pouring them onto the product; by immersion; applying with a soft brush; through a sprayer. In all cases, it is possible to reapply the coating to obtain a thicker layer, thus increasing the level of protection.

The benefits of the coating are good electrical insulation, eliminates the need for housing, does not significantly influence the weight of the product, protects against harmful environmental effects, and reduction of stress in the PCB assembly.

We work with silicone-based coatings with or without solvent and urethane acrylate-based. Each coating has different characteristics, for different applications and with different curing times.

We are specialists in electronics protection and we can indicate the best product for your business!

COATING TYPE	CODE	DESCRIPTION	COLOR	VISCOSITY (CPS)	OPERATION TIME (MIN)	TACK FREE (MINUTES / 25ºC)	HARDNESS (SHORE)	THERMAL CONDUCTIVITY (W/m.k)	DIELETRIC STRENGHT (KV/mm)
Two-Component (Heat curting)	621	One component pasty structural adhesive	Gray	Paste	___	___	85D	0.20	15
	8505	Flexible Circuit	Colorless	10000	30	120	5A	0.22	22
	8610	Flexible Circuit	Colorless	12000	20	60	9A	0.27	22
	8721	High Viscosity, Self Elongation Coating	Colorless	750	70	90	60D	0.24	22
	62112JY-7	Low viscosity and rigid epoxy adhesive	Black	75000	60	___	80D	0.4	18
	UV3342-250	Conformal Coating based on Urethane Acrylate. Does not allow Rework. Protects against dust, corrosion and has waterproofing action. (Uv light cure)	Fluorescent Blue	120-350	3	3	85A	___	29
One-Component (Room temperature curing)	9068	Silicone coating with UV indicator	Colorless	10000	35	20	0.24	20	____
	9099R	Conventional fluid silicone coating	Red	600	40	23	0.25	20	___
	921L	No type of solvent, waterproofing varnish	Colorless	1000	5	20	0.24	20	___
	9442	Fluid	Black	6000	___	30	0.22	20	___
	9446	Low viscosity	Black	Baixa viscosidade	___	30	0.33	20	___
	9446LV	Fluid	Black	Low viscosity	___	30	0.33	20	___
	ZR1576 (9067)	Conventional Fluid coating. Allows Rework. Protects against dust, salt spray, corrosion and possible splashing water.	Colorless	400	20	22	24A	20	___
9060	Conventional Fluid coating. Allows Rework. Protects against dust, corrosion and possible splashing water. It has no solvent in the formulation. It has an ultra-violet indicator.	Colorless	700	30	30	20A	___	20
