Silicone Gel Potting

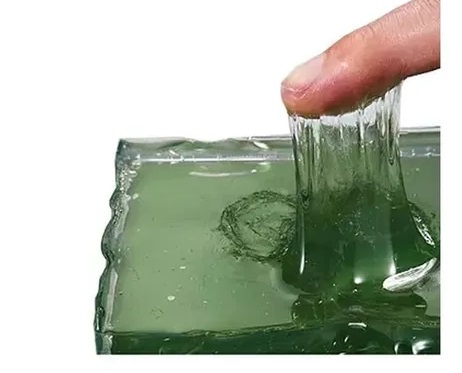

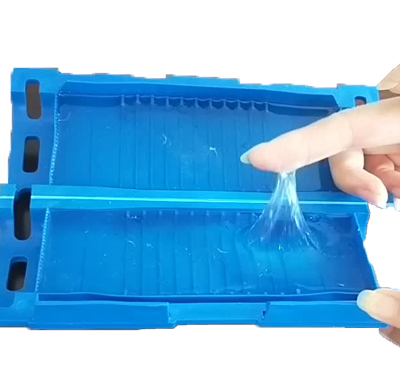

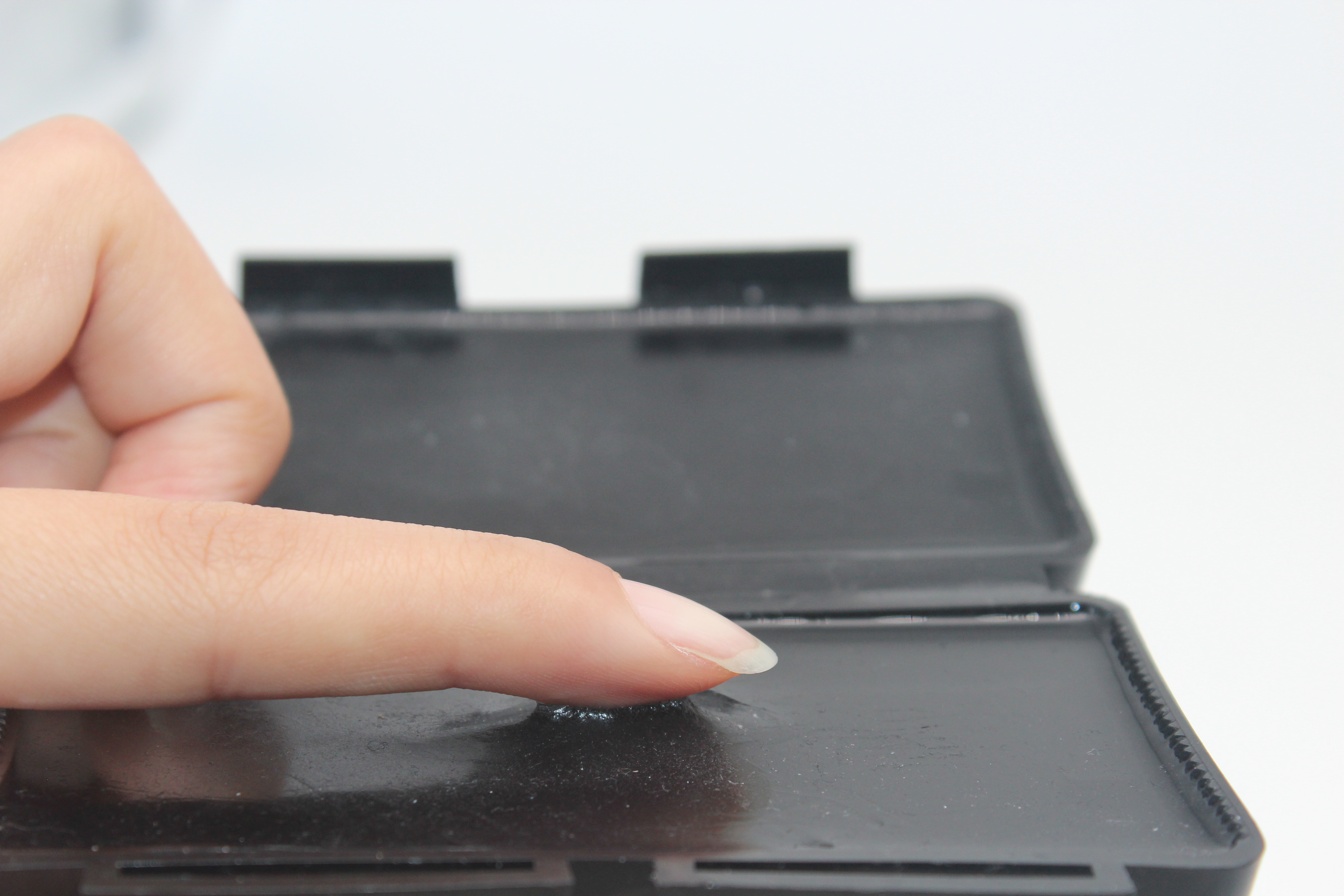

Silicone gel resin for electronics is a condensation polymer that is obtained through polymerization reactions. Its main features are great flexibility, excellent adhesion, chemically inert, good electrical insulator, water repellent, long service life in harsh environments, good heat resistance and allows for voltage checking without the need for a rework. It is possible to “open” the gel, rework and release the gel, where it returns to its previous state naturally.

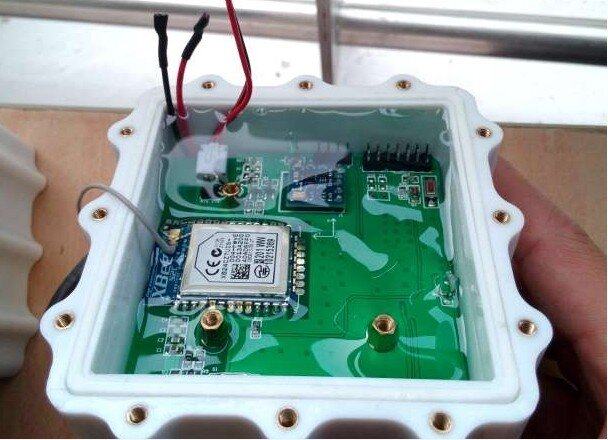

In the electronics industry, it is commonly used for telephone boxes, flow meters, boards that need a rework and will be exposed to vibrations and high humidity.

CODE	DESCRIPTION	COLOR	VISCOSITY (CPS)	OPERATION TIME (MIN)	TACK FREE (MINUTES / 25oC)	HARDNESS (SHORE)	THERMAL CONDUCTIVITY (W/m.k)	DIELETRIC STRENGHT (KV/mm)
8706	High abrasion resistance	Colorless	1100	115	30	65A Penetração	0.24	25/td>
8707	Hard silicone gel containing Phosphorus	Colorless	600	35	50	20A	0.24	22
8708	General auto repair.	Colorless	1200	120	3hr	85A	0.24	25
8230-1	Auto Cure, Resistance to Flammability, Good Thermal Conductivity	Black / White	4500	20	40	35A	0.60	20
8602	Optical gel, high adhesion strength	Colorless	1000	30	70	50A	0.24	22
8603	Optical gel, low hardness	Colorless	5500	25	45	12:00 AM	0.24	22
8230-3	Reworkable Flexible Adhesive, Heat Conduction, Flame Retardant	Gray	3000	40	70	35 A Penetração	1.5	20
350	Thermal Conductive Gel	Colorless	___	___	___	2:00 AM	3.5	15
320	Deep Curing	Black	Pasta	40	90	35A	0.40	18
322	Rapid Curing Structural Silicone Adhesive	Black	Pasta	5	20	35A	0.40	18
100 series	Applied as a thermoconductive pad	Gray / White / Red	___	___	___	10~70 shore 00	3.5	12
8710-2	Excellent adhesion, reworkable, suitable for automotive modules, sensors in general that need good waterproofing	Incolor	350	45	4h	___	___	25
8715	Excellent adhesion, reworkable, suitable for automotive modules, sensors in general that need good waterproofing.	Colorless	750	50 - 70	8h	___	___	25
8230-15	Excellent adhesion, reworkable, suitable for circuits that need good adhesion, impermeability and heat dissipation.	Gray	2500 - 3500	40 - 60	4 h	50A	1.54	25
8605	Excellent adhesion, reworkable, suitable for modules, excellent waterproofing of circuits that will remain below ground.	Translucent Blue	500	60	60	___	___	25
