Polyurethane Potting

Polyurethane potting for electronics, also known as PU Potting, is an exception to condensing polymers because it does not release water or another small molecule during polymerization.

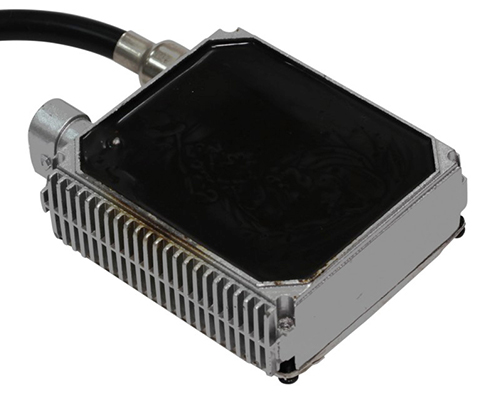

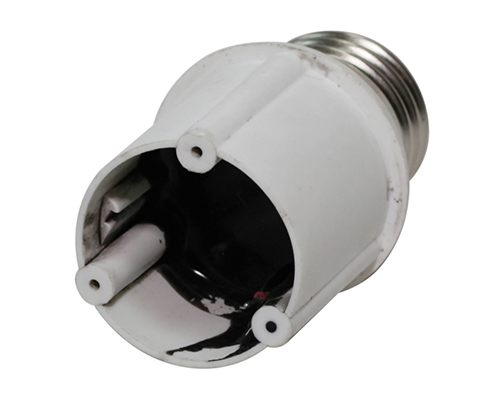

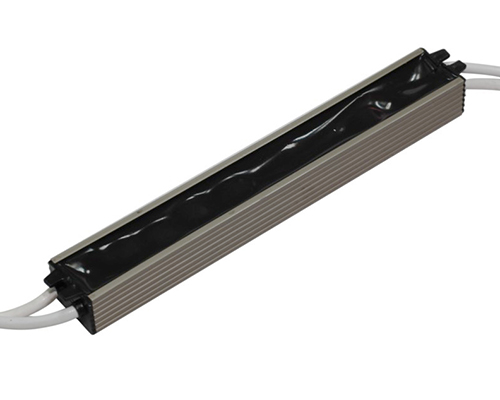

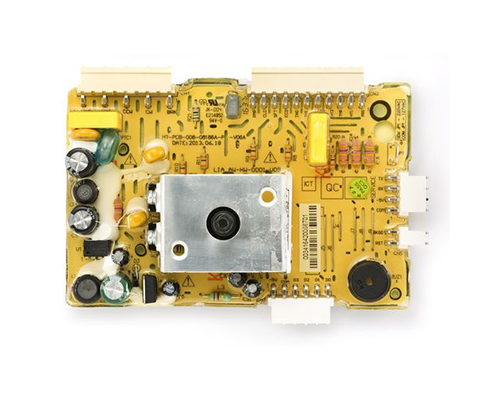

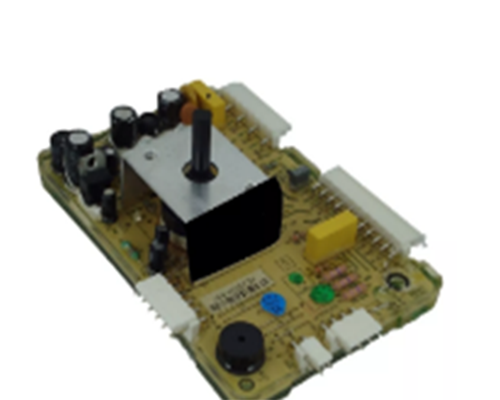

In the electronics industry, PU is used to encapsulate electronic boards that will be exposed to temperature and humidity variations, such as washing machine boards, microwave ovens, bathtubs, refrigerators and many other equipment or appliances.

Its main features are strong hardness, resistance to dust, humidity, vibrations, temperature variations and excellent high frequency electrical performance. It keeps stable properties between -40 to 302°F (-40 to 150°C).

CODE	DESCRIPTION	COLOR	VISCOSITY (CPS)	OPERATION TIME (MIN)	TACK FREE (MINUTES / 25oC)	HARDNESS (SHORE)	THERMAL CONDUCTIVITY (W/m.k)	DIELETRIC STRENGHT (KV/mm)
660X	Uniform black particles	Black / Amber	850	20	4	80D	0.40	18
6609	Flame retardant sealant V-0	Black	2800	20	40	50A	0.45	18
6601	Fast curing	Âmbar	400	20	35	65A	0.22	18
6606	Black, good resistance, flame retardant	Black	3000	40	90	85A	0.65	18
6020	Amber. good resistance, flame retardant	Amber / Light Yellow	200	35	90	30A	0.2	15
6030	Amber. good resistance, flame retardant	Amber / Light Yellow	500	30-60	____	35A	0.2	16
7586	PU, flame retardant	Black	400	35	70	40A	0.22	18
6127 (PU552)	Black, good resistence	Black	1400	14	180	30D	0.55	12
